Automatic PC Compression Testing Machine with Servo Control

Brand Name : PTE

Model Number : Automatic PC Compression Testing Machine with Servo Control

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T, Western Union

Delivery Time : wooden case

Packaging Details : within 10 days after the confirmed order

Usage : Testing Machine

standards : ASTM, DIN, BS, JIS, GB, etc.

Display : Digital

Driving : Hydraulic

Control : Manual

Column Processing : Galvanized

HS Code : 9024800000

Contact Now

Automatic PC Compression Testing Machine with Servo Control

2000KN Concrete Fully Automatic Compression Testing Machine
Features:
underneath type oil cylinder and hydraulic loading, pendulum testing;
six-dimensional gamut;
with high precision;
easy to operate.
Application:
Compression test of building materials including concrete, cement, airbrick, fire proofing tile, engineering ceramics and building stones;

Max. load	2000kN
Test frame	whole casting
Test range	20kn-2000kN
Reading accuracy	±1%
Displacement accuracy	±1%
Noise	Below 40 dB
Working voltage	AC220V±10%

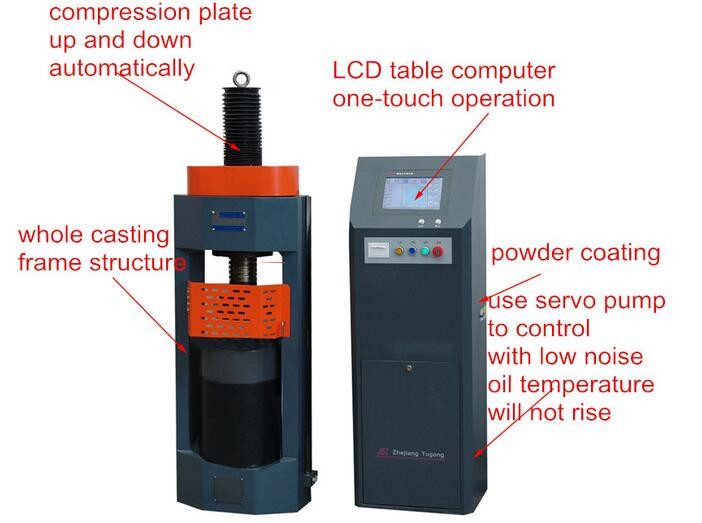

8,It is the latest technology, using servo pump control system for loading system, with Low noise, fast response, high stability and so on.
9,The operating interface uses 10 inch industrial tablet computer, with embedded control software, compact structure, easy operation.
10,The computer can automatically display the load, strength, speed and load curve in the test process, automatically determine whether samples are broken, calculate and save test results. It can query and print the complete test report.

Why Choose us?
1. Superior Quality & Reasonable Price
2. Professional Project Design Team & Complete Project Management System
3. Full range of Products, including soil, asphalt, concrete, cement, motor and rock
offer you one-stop purchase, save your money and delivery time.
4. Great Production Capacity, 14 modernized standard workshops
5. Experienced Engineer & Satisfactory After-sales Service
6.MOQ:1 set is avaliable
7.Cover an area of 26,680 square meter

Automatic PC Compression Testing Machine with Servo Control

Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
Automatic PC Compression Testing Machine with Servo Control
