NJS-200 Digital display torsion testing machine

Product Categories
jinan hardness STING EQUIPMENT CO., LTD
Contact Now

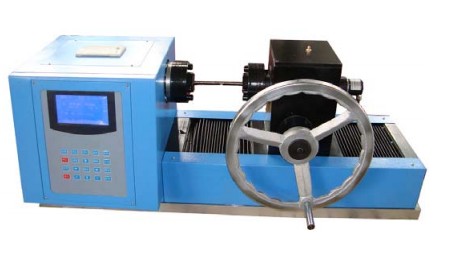

NJS-200 Digital display torsion testing machine

  • 1
  • 2

Brand Name : PTE

Model Number : NJS

Certification : CE ISO

Place of Origin : Jinan

MOQ : 1

Payment Terms : T/T, Western Union, L/C

Delivery Time : 15-30 days

Packaging Details : professional wooden box

Applications : designed for torsion test to metal materials, non-metallic materials, composite materials and components as National and global standards “metal at room temperature torsion test method”

widely used : quality control; metallurgical steel; machinery manufacturing; civil aviation; institutions of higher learning; research laboratories; inspection arbitration, technical supervision departments; building materials ceramic; petrochemical industry; other indu

Contact Now

NJS-200 Digital display torsion testing machine

NJS-200 Digital display torsion testing machine

torsion testing machine

Applications:

This torsion testing machine is designed for torsion test to metal materials, non-metallic materials, composite materials and components as National and global standards “metal at room temperature torsion test method”. It is widely used in the field of quality control; metallurgical steel; machinery manufacturing; civil aviation; institutions of higher learning; research laboratories; inspection arbitration, technical supervision departments; building materials ceramic; petrochemical industry; other industries Mechanics Laboratory.

Main specifications



Item NJS-30 NJS-50 NJS-100 NJS-200
Max torque(Nm) 30 50 100 200
Torque accuracy ≤±1%
Torque resolution (Nm) 0.01 0.01 0.1 0.1
Accurate measuring range of torsion (Nm) 0.6-30 1-50 2-100 4-200
Full-scale reading of torsion angle (º) 9999.9
Torsion angle resolution (º) 0.01
Relative error of torsion indication ≤±1%
Relative error of torsion indication repeatability ≤±1%
Sample diameter(mm) ≤10
Max axial test space (mm) 0-260 (Test space can be extended for special order)
Operating voltage (V) AC220V±10%

NJS-200 Digital display torsion testing machine

NJS-200 Digital display torsion testing machine
