PLS Series Dynamic electronic Fatigue Testing laboratory equipment

Brand Name : PTE

Model Number : PLS Series Dynamic electronic Fatigue Testing laboratory equipment

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T, Western Union

Delivery Time : wooden case

Packaging Details : within 10 days after the confirmed order

Usage : Universal Testing Machine

test : compression tension bending shearing

standards : ASTM, DIN, BS, JIS, GB, etc.

test material : metal,plastic,rubber,spring, all kinds of rope material

fields : metallurgy, machinery, building engineering,industry,lab,factory

Load accuracy : ≤±1%

Contact Now

PLS Series Dynamic electronic Fatigue Testing laboratory equipment

Applications

PLS Electro-hydraulic servo testing machine is produced according to the dynamic servo test technology, and utilizes the design methods of unitization, standardization and modularization, which enhance the stability and reliability of the system. The machine is mainly used for the dynamic and static mechanics performance tests to material and parts, equipped with corresponding accessories, it can do tensile, compression, low cycle and high cycle, crack growth test

Specifications

Model		PLS-50	PLS--100	PLS--200	PLS--500	PLS--750	PLS-1000
Load capacity (kN)	Static	±50	±100	±200	±500	±750	±1000
	Dynamic	50	80	160	400	600	800
Measurement accuracy	Load	±1.0% of reading
	Displacement	±1.0%FS of each file
	Deformation	±1.0% of reading
Function generator Range of frequency(Hz)		0.01~20HZ
Stroke of piston(mm)		±75
Distance between columns (mm)		500	565	700	820	820	1000
Distance between grips		50~600

PLS Series Dynamic electronic Fatigue Testing laboratory equipment

PLS Series Dynamic electronic Fatigue Testing laboratory equipment

Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
PLS Series Dynamic electronic Fatigue Testing laboratory equipment

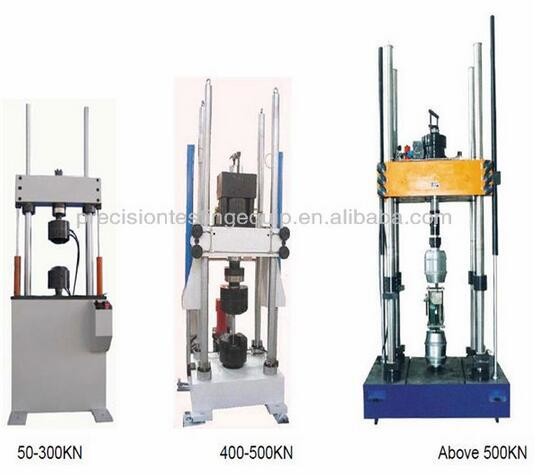

PLS Series Dynamic electronic Fatigue Testing laboratory equipment Images
